ECM Mechanika IV Profi Switchable Espresso Machine

By ECM

The ECM Mechanika IV Profi is a heat exchange machine made with the best parts available for results that impress. The Mechanika IV Profi's switchable water source and ECM's innovative design make this espresso machine a staple consideration on the prosumer market.

Free Shipping

Free shipping on all orders over $50 or more.

Free Shipping

Includes a 3-Year Parts and Labor Warranty.

Bundle & Save

Easy Savings, Smart Selections

Get great deals on hand-picked products. Our bundles have everything you need to brew, steam, and serve with your machine.

Bundle & Save

Featured Product

Add a Grinder

Please select an option

Pro Brewing Upgrades

Please select an option

Choose Accessories

Please select an option

Add Care Products

Please select an option

Water Filtration

Please select an option

Select Coffee

Please select an option

Espresso Machine Warranty

Please select an option

Your ECM Mechanika IV Profi Switchable Espresso Machine Bundle

×

Product Title

Text

Your Build

×

Summary

Bundled Items:

Customized Items:

Heat Exchanger

The Mechanika IV Profi is equipped with a 1400 W stainless steel boiler with a capacity of 2.1 L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.

1/4

Heat Exchanger

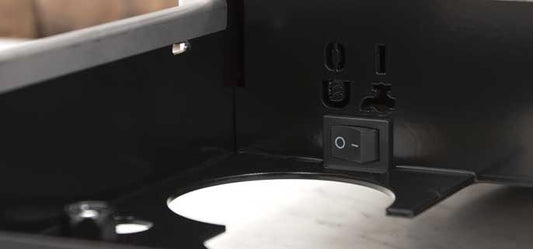

Switchable Water Source

With the flip of a switch, the Mechanika IV Profi can choose which source of water is being used, between the reservoir and a direct water line connection. The reservoir boasts a capacity of 3 liters.

2/4

Switchable Water Source

E61 Brew Group

The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.

3/4

E61 Brew Group

Handmade & High-End Construction

The machine is housed in mirror-finished, stainless steel panels. It rests on a one-piece internal steel frame, which protects it from bending or bowing during shipping or as the result of continuous use.

4/4

Handmade & High-End Construction

On the Blog

bannerimage
Looking for the best espresso machine? Prosumers are high-end espresso machines made for people who are serious about brewing the best espresso at home.
Read More
bannerimage
Boilers for the modern espresso machine speak to their purpose through the materials used to construct them. These materials are varied, and sometimes a combination of materials are used when boile...
Read More
Pulling Great Espresso Shots
There is no group of settings which will make the perfect shot. Making the best possible shot depends on a bunch of variables coming together to make an espresso you like! That said, I can give you...
Read More
bannerimage
Learn how to achieve proper brew temperature on your heat exchanger espresso machine to avoid burning your coffee.
Read More
ECM Mechanika IV vs Technika V vs Elektronika II Profi
ECM has one of the strongest selection of espresso machines on the market, but you might be at a loss for which to pick for your home. If you're looking for a new, high-end espresso machine for you...
Read More

Specifications

Property Value
SKU
ECMMECHIVPRO
Boiler Configuration
Heat-Exchanger Preheated
Number of Boilers
1
Boiler Features
Brew & Steam Simultaneously
Brew Boiler Heater Location
Internal
Brew Boiler Material
Stainless Steel
Brew Boiler Orientation
Horizontal
Brew Boiler Volume (Oz)
68 fl-oz
Three-Way Valve
Manual
Brew Group Material
Chrome Plated Brass
Brew Group Size (mm)
58 mm
Brew Group Type
E61
Brew Boiler Wattage
1400
Recommended Application
Home / Residential
Display Type
Indicator Lights
Controls and Additional Features
Low-Water Warning,Power Light,Pre-Infusion,Pressure Gauge(s),Steam Control
Pressure Gauges
Brew Circuit,Steam Boiler
Type of Controls
Lever
Cup Height (max, inches)
3.25 in
Cup Warmer Material
Stainless Steel
Cup Warmer Size (L-in x W-in)
10 x 4
Cup Warmer
Passively Heated
Drip Tray Capacity (oz)
32 fl-oz
Drip Tray Cover Material
Stainless Steel
Drip Tray Material
Stainless Steel
Portafilter Baskets Included
Double,Single
Frame Material
Steel
Housing Color
Stainless Steel
Housing Material
Stainless Steel
Recommended Descaler Type
Durgol Swiss Espresso Descaler
Recommended Water Filter
No Filter Required
Depth (Inches)
17.71 in
Height (Inches)
15.55 in
Weight (Lbs)
60 lbs
Width (Inches)
11.88 in
Hot Water Reheat Time (Typ. Seconds)
0 sec
Hot Water Temperature (8oz, Deg. F)
199 f
Hot Water Time (8oz, Seconds)
7 sec
Property Value
Time to Heat (Minimum Seconds)
600 sec
Time to Heat (Recommended Seconds)
900 sec
Filter Diameter (mm)
58 mm
Portafilter Handle Material
Bakelite Plastic,Plastic
Portafilter Material
Chrome Plated Brass
Number of Portafilters Included
2
Ground, E.S.E., Pod and Capsule Compatibility
Ground Coffee
Portafilter Type
Commercial Style
Portafilter Weight (lbs)
1.25 lbs
Adjustable Brew Pressure
Yes
Pump Pressure (Max. Bar)
16 Bar
Pump Type
Rotary Pump
Pump Wattage
120 watts
Warranty Service Provider Email
support@wholelattelove.com
Warranty Service Provider
Whole Latte Love
Warranty Service Provider Phone Number
888-411-5282
Manufacturers Warranty Period
3-Year Parts and Labor Warranty
Amps
11.6 A
Volt
110V-120V (US)
Watts
1400 Watt
Power Cord Length (inches)
48 in
Steam Boiler Material
Stainless Steel
Steam Boiler Volume (Oz)
68 fl-oz
Steam Boiler Wattage
1400 Watt
Steam Wand Features
No-Burn
Height Off Counter (Inches)
6.5 in
Steam Tip Hole Count
2
Steam Wand Material
Stainless Steel
Steam Wand Movement Type
Fully Articulated
Steam Wand
Commercial Style
Steam Wand Usable Length
4 in
Water Reservoir Access Location
Top
Water Reservoir Capacity
100 fl-oz
Water Reservoir Features
Removable
Water Reservoir Material
Plastic
Water Source
Reservoir and Water Line
Maximum Incoming Water Pressure (PSI)
50 PSI
